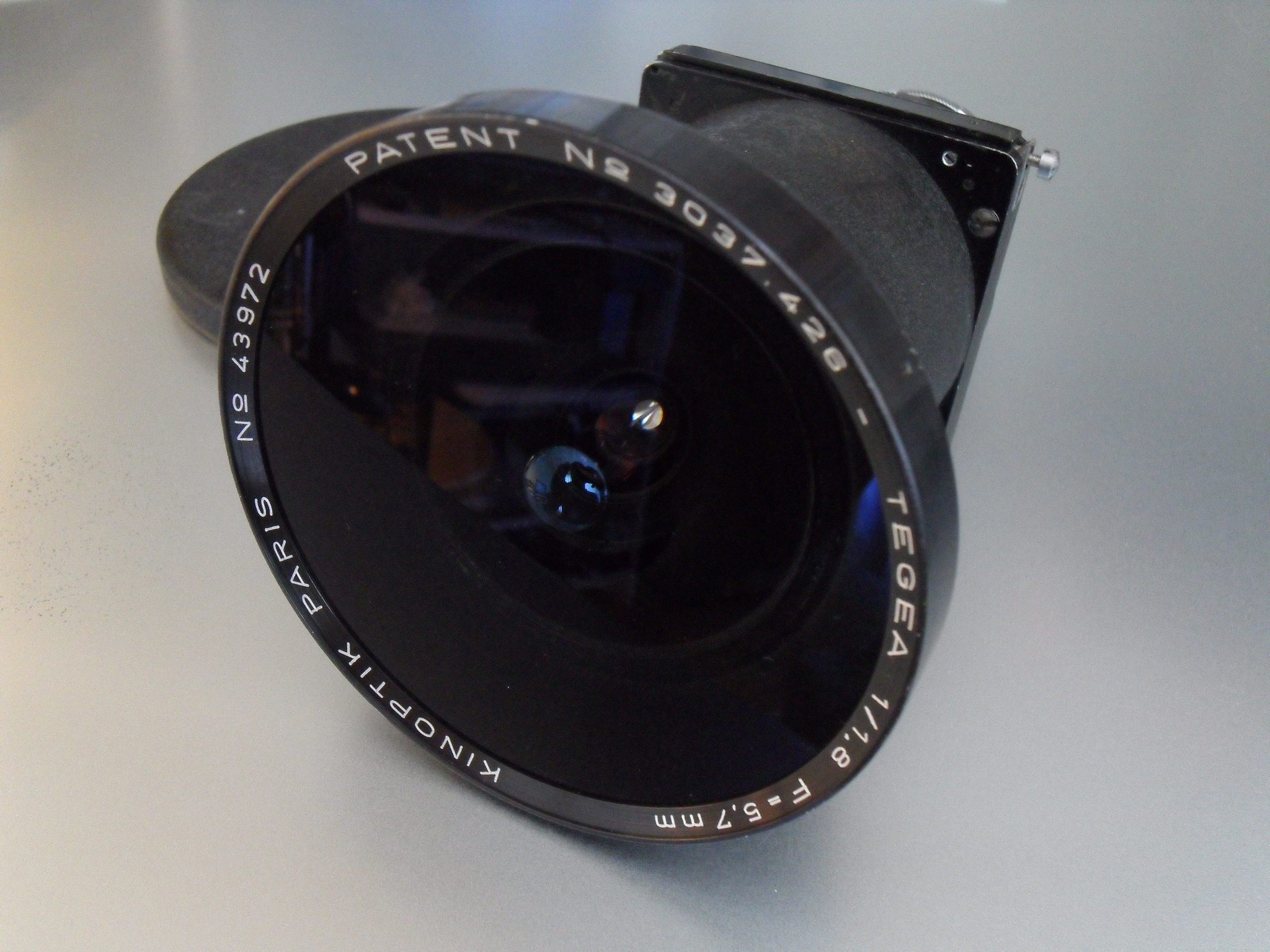

Kinoptik Tegea 5.7mm f/1.8
A great non-fisheye wide angle lens that covers super 16.

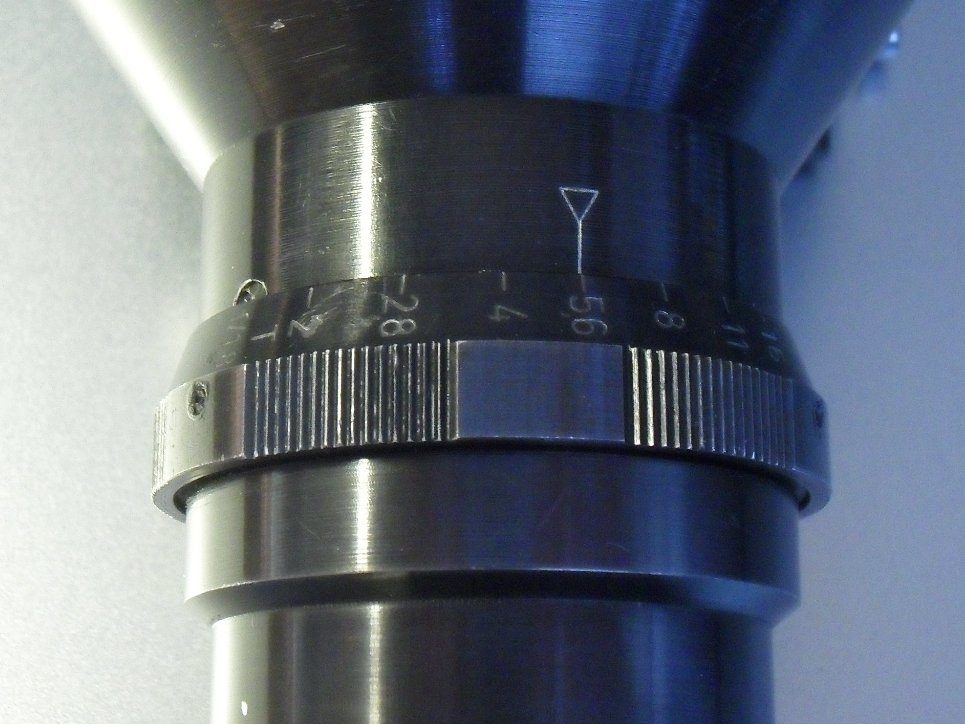

Diaphragm
| Unlike some lenses, the aperture ring doesn't click at each stops. The markings are in T stops (from T2-T16). |

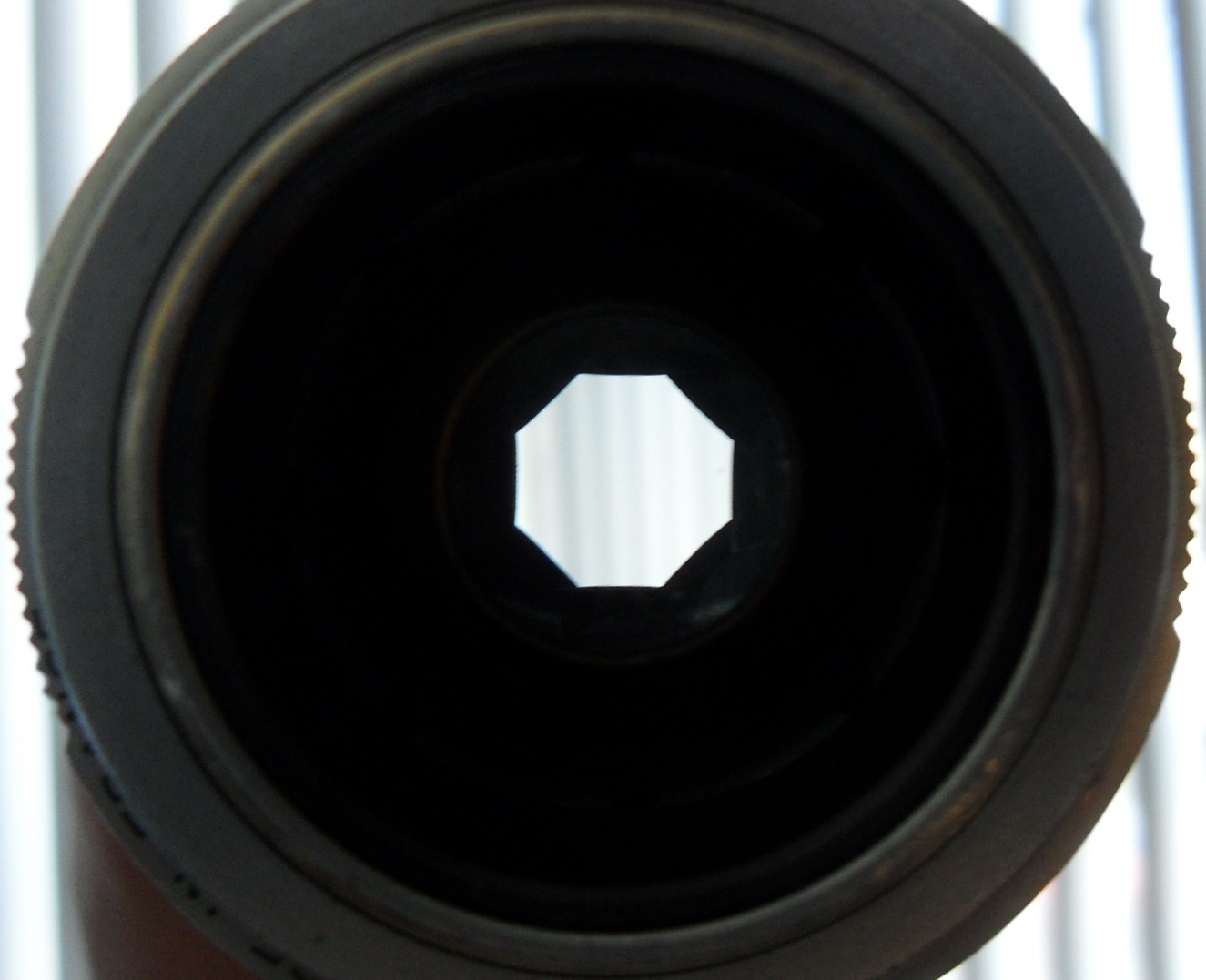

| The diaphragm forms an octagonal aperture. |

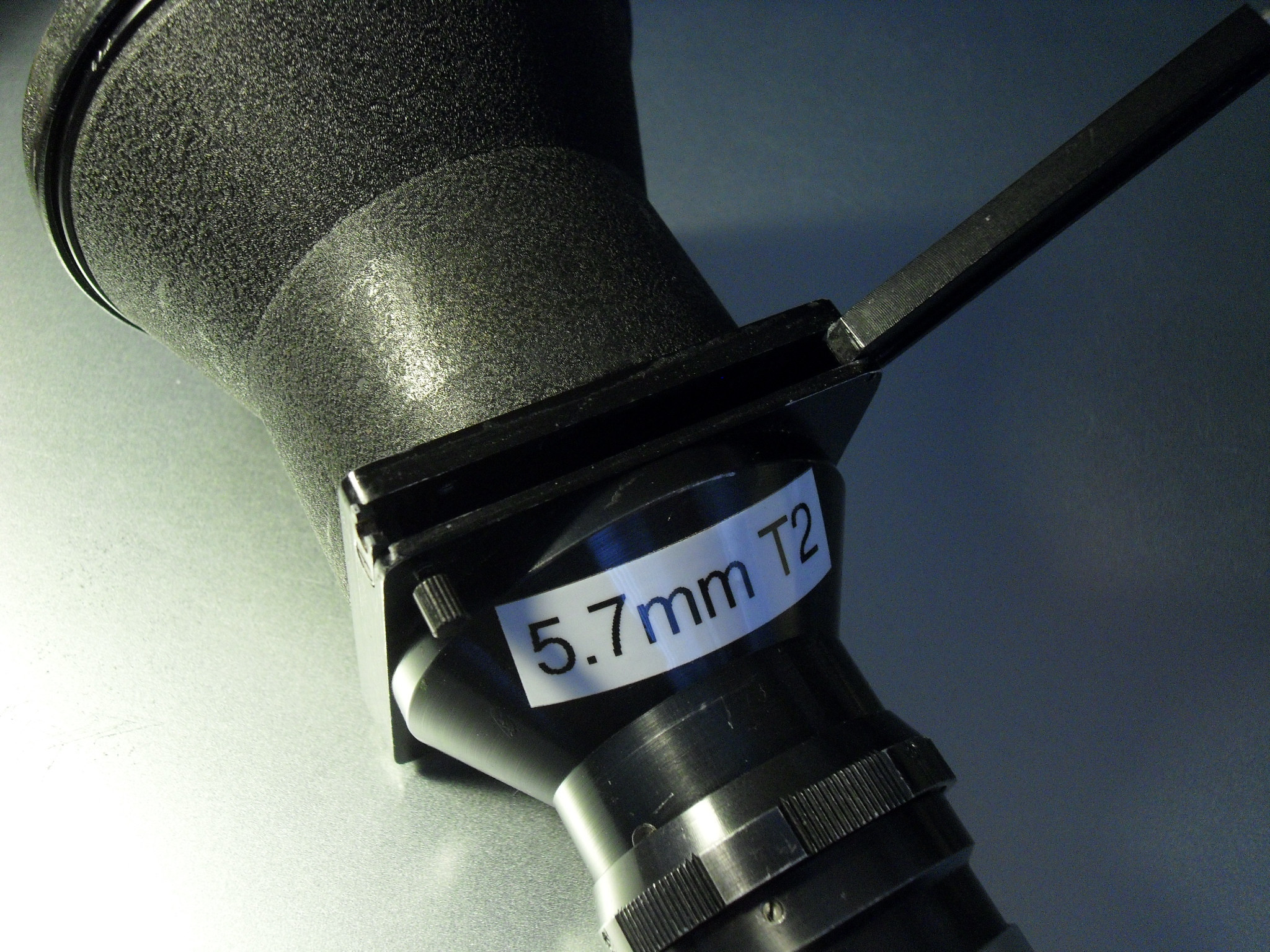

3x3 Filter
| You can put a 3x3 filter in the lens!! |

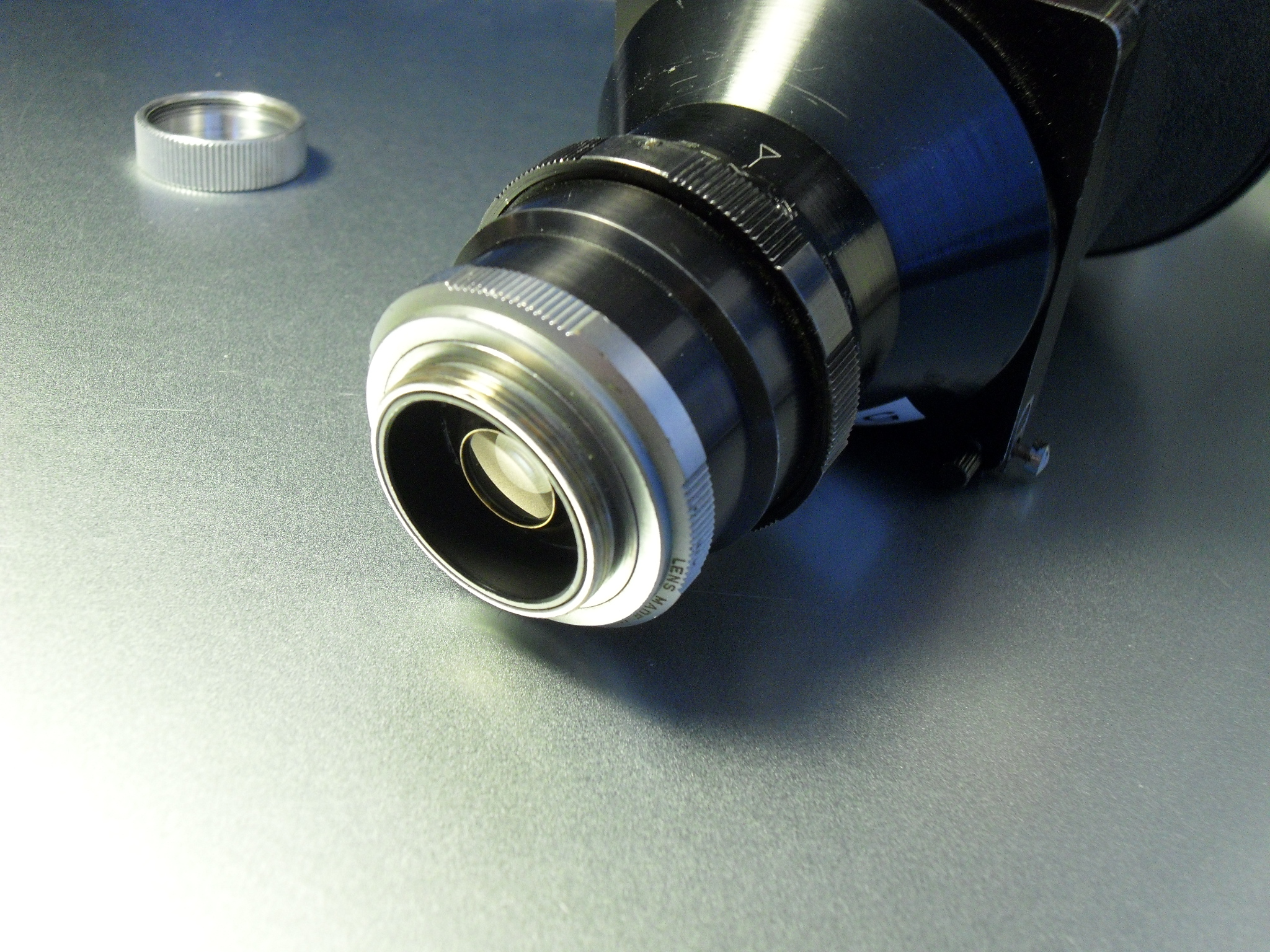

C Mount
| Kinoptik is available in various mounts including Arri-S and Arri-B. Mine came in C mount. The lens is quite heavy, so you might want to be careful handling the lens if you are thinking of getting the lens in C mount. |
Specification
| Manufacturer | Kinoptik |
| Format | Super 16 |
| Super 16 Coverage | Yes |
| Focal Length | 5.7mm |
| Aperture | f/1.8 (T2-16) |
| Transmissive Light Loss | Appx. 1/3 stop |
| Diaphragm | 16-blade Octagonal (Dual Layer) |
| Min. Focus Distance | |
| Macro | N/A |
| Front Thread Diameter | N/A |
| Construction | Unknown |
| Mount | Arri-S / Arri-B / C |
